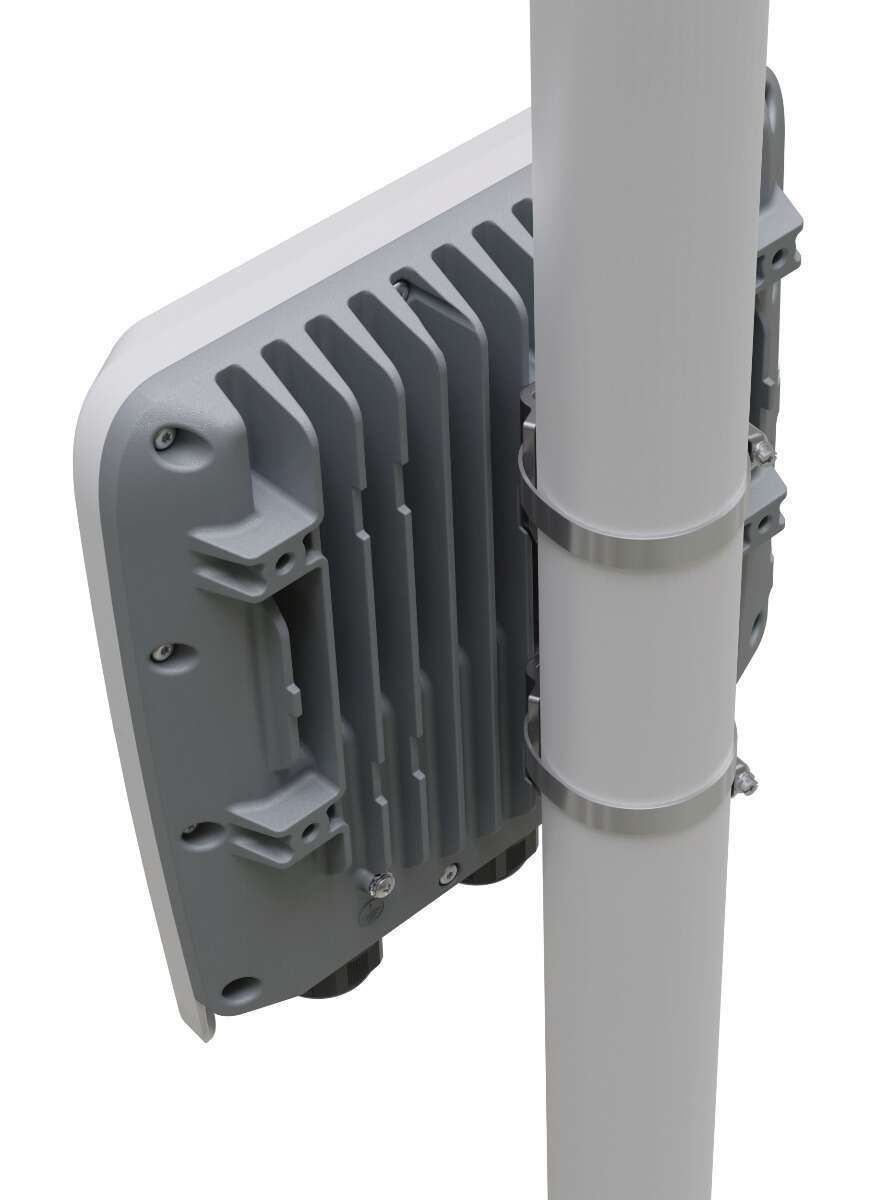

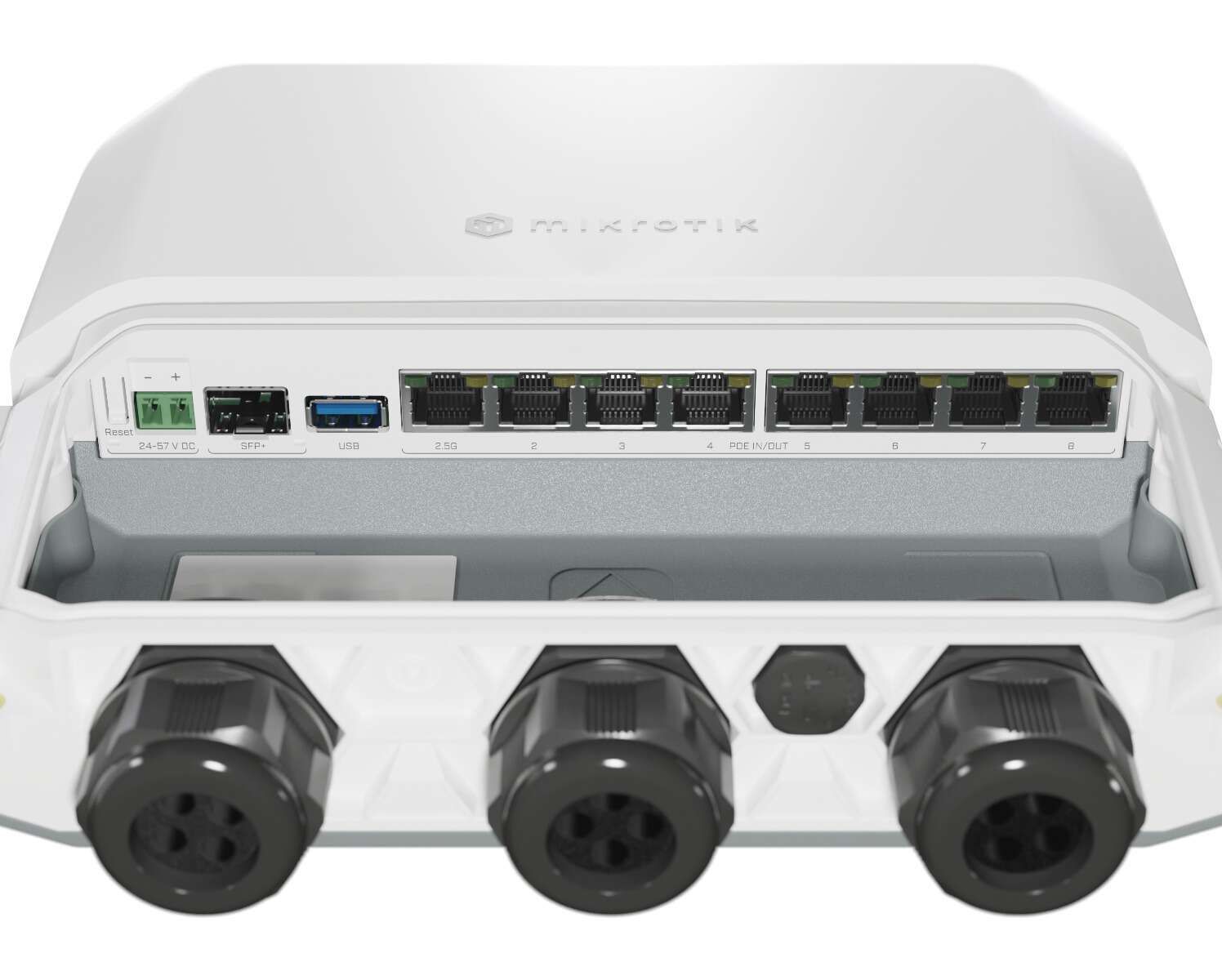

Spoljašnja verzija robusnog PoE rutera. 7× Gigabit Ethernet portova, 1× 2.5 Gigabit Ethernet, 10G SFP+, 1 GB RAM-a, 1 GB NAND memorije, moderan četvorojezgarni CPU, 9 opcija napajanja, izdržljivo IP66 vodootporno kućište.
Specifications
| Details |
| Product code |
RB5009UPr+S+OUT |
| Architecture |
ARM 64bit |
| CPU |
88F7040 |
| CPU core count |
4 |
| CPU nominal frequency |
350-1400 (auto) MHz |
| CPU Threads count |
4 |
| Switch chip model |
88E6393 |
| RouterOS license |
5 |
| Operating System |
RouterOS v7 |
| Size of RAM |
1 GB |
| Storage size |
1 GB |
| Storage type |
NAND |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
Powering
| Details |
| Number of DC inputs |
2 (PoE-IN, 2-pin terminal) |
| 2-pin terminal input Voltage |
24-57 V |
| Max power consumption |
150 W |
| Max power consumption without attachments |
15 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
24-57 V |
PoE-out
| Details |
| PoE-out ports |
Ether1-Ether8 |
| PoE out |
802.3af/at |
| Low voltage PoE-Out current limit |
900 mA |
| High voltage PoE-Out current limit |
440 mA |
| Max total out (A) |
2.59 A |
| Total output current |
2.28 A |
| Total output power |
130 W |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
7 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) |
7 |
| Number of 2.5G Ethernet ports |
1 |
| Number of 2.5G Ethernet ports with PoE-out |
1 |
Fiber
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB 3.0 type A |
| Max USB current (A) |
1.5 |
Other
| Details |
| CPU temperature monitor |
Yes |
| Current Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
| IP |
66 |
