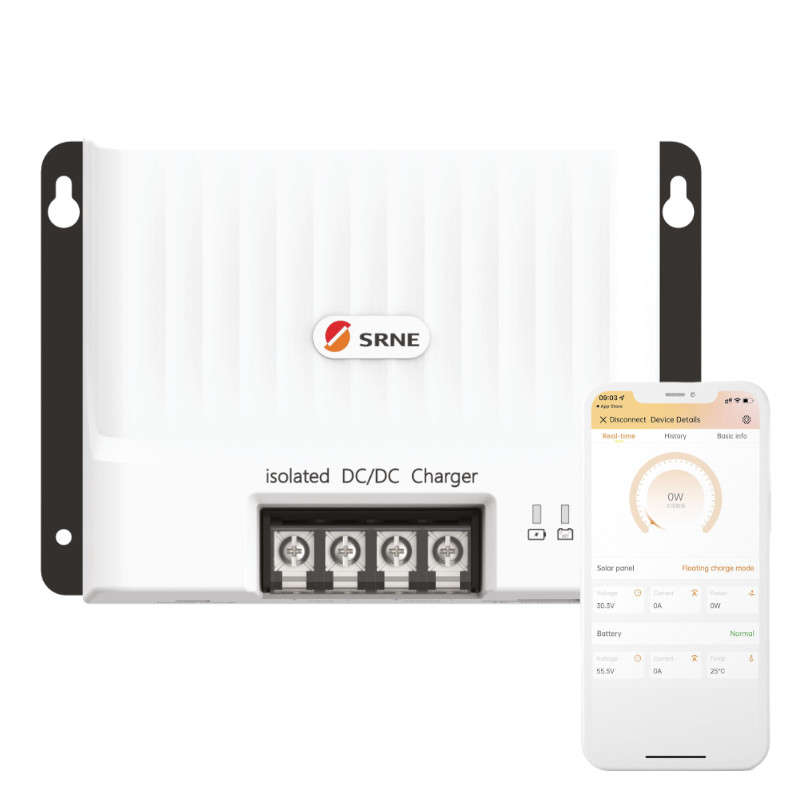

SRNE DCI12-1230 je izolovani DC-DC punjač dizajniran za podršku raznim off-grid aplikacijama. Nudi dva režima rada: režim punjenja, namijenjen punjenju baterija (uključujući litijum-jonske i olovno-kiselinske baterije), i režim napajanja, koji omogućava napajanje DC uređaja. Punjač podržava ulazne napone u rasponu od 10–16 V i obezbjeđuje do 30 A struje punjenja, uz efikasnost konverzije punjenja do 92%.
Specification
Parameters / Model
DCI12-1230
Input voltage range
10~16Vdc
Output voltage
Default 12.2V, range 10~16V can be set
DC input start/end voltage
Default above 12.5V to start, below 12.0V to stop
Maximum output load current
30A
Charging mode
System voltage
12Vdc
Battery types
Lead acid/lithium/user defined battery.
Input voltage range
10~16Vdc
Nominal charging current
30A
Input power
≤500W
Maximum charging conversion efficiency
92%
General data
Dimensions
187*133.6*83.9mm
Libra
1.4 kg
Degree of protection
IP43
Temperature
-35℃~65℃
Output mode
Charging Mode (Default) / Power Mode
Height
≤3000m
Cooling method
natural cooling
Guarantee
3 years
Communication
Bluetooth、TTL、RS485、CAN
Certificates
RoHS/CE/EMC
Security
Internal overheat protection, low input voltage protection, input overvoltage protection, output overvoltage protection, output overload protection, and output short circuit protection
