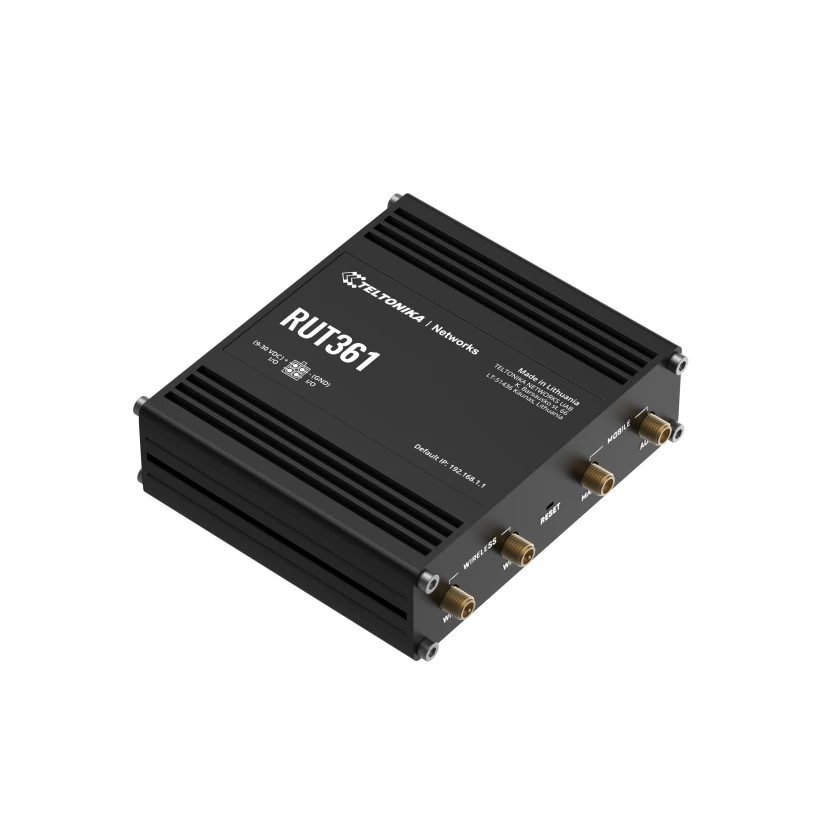

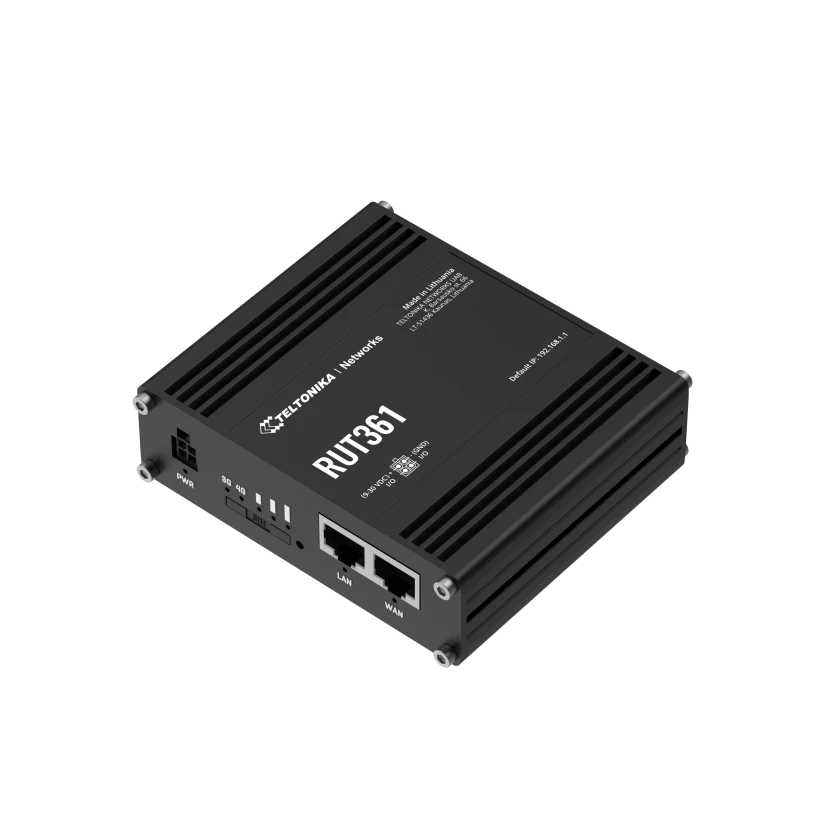

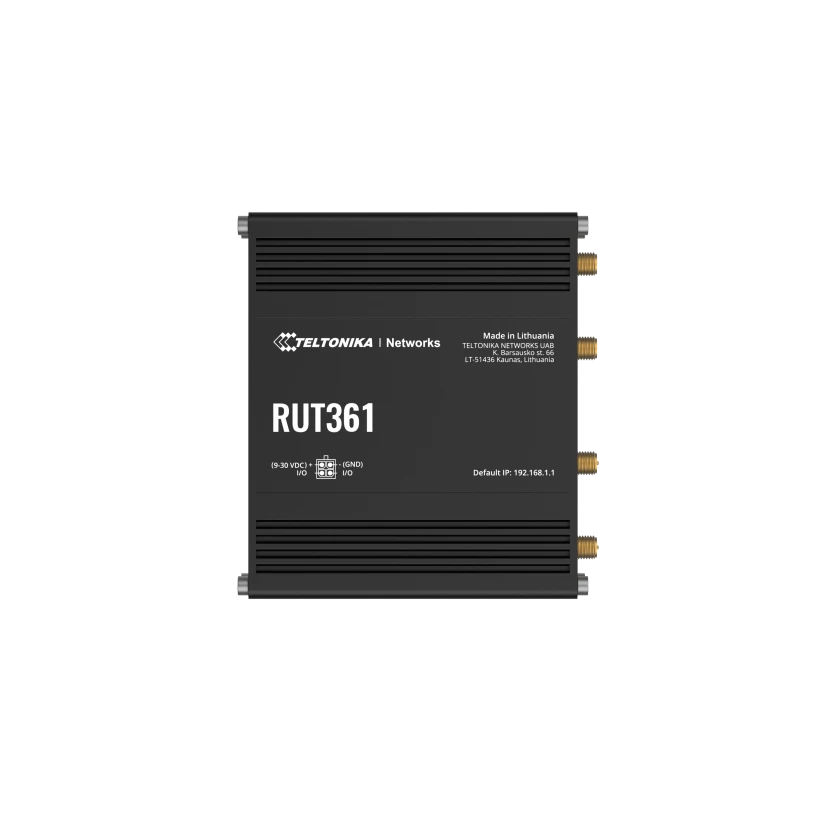

Teltonika RUT361

Mobile
Mobile module - 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps

3GPP Release - Release 12

Status - IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS - SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD - Supports sending and reading Unstructured Supplementary Service Data messages

Block/Allow list - Operator block/allow list (by country or separate operators)

Multiple PDN - Possibility to use different PDNs for multiple network access and services

Band management - Band lock, Used band status display

SIM PIN code management - SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN - Auto APN

Bridge - Direct connection (bridge) between mobile ISP and device on LAN

Passthrough - Router assigns its mobile WAN IP address to another device on LAN

Wireless
Wireless mode - 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)

Wi-Fi security - WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID/ESSID - ESSID stealth mode

Wi-Fi users - Up to 50 simultaneous connections

Wireless Connectivity Features - Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter - Allowlist, blocklist

Wireless QR code generator - Once scanned, a user will automatically enter your network without needing to input login information

TravelMate - Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet
WAN - 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

LAN - 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network
Routing - Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols - TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough support - H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring - Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall - Port forward, traffic rules, custom rules, TTL target customisation

Firewall status page - View all your Firewall statistics, rules, and rule counters

Ports management - View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology - Visual representation of your network, showing which devices are connected to which other devices

DHCP - Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM) - Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS - Supported >25 service providers, others can be configured manually

DNS over HTTPS - DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup - VRRP, Wired options, each of which can be used as an automatic Failover, Wi-Fi WAN, Mobile

Load balancing - Balance Internet traffic over multiple WAN connections

Hotspot - Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

SSHFS - Possibility to mount remote file system via SSH protocol

Traffic Management - Real-time monitoring, wireless signal charts, traffic usage history

Security
Authentication - Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Firewall - Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack prevention - DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN - Port and tag-based VLAN separation

Mobile quota control - Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter - Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control - Flexible access control of SSH, Web interface, CLI and Telnet

SSL certificate generation - Let's Encrypt and SCEP certificate generation methods

802.1x - Port-based network access control server

VPN
OpenVPN - Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption - DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec - XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE - GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP - Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel - Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN - Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP - SSTP client instance support

ZeroTier - ZeroTier VPN client support

WireGuard - WireGuard VPN client and server support

Tinc - Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Tailscale - Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA
Supported modes - Client, Server

Supported connection types - TCP

MODBUS
Supported modes - Server, Client

Supported connection types - TCP

Custom registers - MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats - 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER
Protocol - HTTP(S), MQTT, Azure MQTT

Data to server - Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway
Modbus MQTT Gateway - Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3
Supported modes - Station, Outstation

Supported connection - TCP

DLMS/COSEM
DLMS Support - DLMS - standard protocol for utility meter data exchange

Supported modes - Client

Supported connection types - TCP

API
Teltonika Networks Web API (beta) support - Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management
WEB UI - HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTA - Firmware update from server, automatic notification

SSH - SSH (v1, v2)

SMS - SMS status, SMS configuration

Call - Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

TR-069 - OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT - MQTT Broker, MQTT publisher

SNMP - SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC - Management API over HTTP/HTTPS

MODBUS - MODBUS TCP status/control

RMS - Teltonika Remote Management System (RMS)

IoT Platforms
ThingWorx - Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity - Cloud of Things - Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Azure IoT Hub - Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

AWS IoT Core - Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics
CPU - Mediatek, 580 MHz, MIPS 24KEc

RAM - 128 MB, DDR2

FLASH storage - 16 MB serial NOR flash

Firmware / Configuration
WEB UI - Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA - Update FW

RMS - Update FW/configuration for multiple devices at once

Keep settings - Update FW without losing current configuration

Factory settings reset - A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION
Operating system - RutOS (OpenWrt based Linux OS)

Supported languages - Busybox shell, Lua, C, C++

Development tools - SDK package with build environment provided

GPL customization - You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package Manager - The Package Manager is a service used to install additional software on the device

Input / Output
Input - Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output - Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA

Events - Email, RMS, SMS

I/O juggler - Allows to set certain I/O conditions to initiate event

Power
Connector - 4-pin industrial DC power socket

Input voltage range - 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection

PoE (passive) - Passive PoE (Optional - different hardware required; contact your sales manager)

Power consumption - Idle: < 2.4 W, Max: < 4.7 W

Physical Interfaces
Ethernet - 2 x RJ45 ports, 10/100 Mbps

I/O’s - 2 x Configurable I/O pins on 4-pin power connector

Status LEDs - 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power

SIM - 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder

Power - 1 x 4-pin power connector

Antennas - 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi

Reset - Reboot/User default reset/Factory reset button

Physical Specification
Casing material - Aluminium housing

Dimensions (W x H x D) - 100 x 30 x 85 mm

Weight - 243 g

Mounting options - DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment
Operating temperature - -40 °C to 75 °C

Operating humidity - 10% to 90% non-condensing

Ingress Protection Rating - IP30

Regulatory & Type Approvals
Regulatory - CE, UKCA,FCC, IC, RCM, CB, WEEE, RoHS, REACH

Operator - PTCRB, AT&T, Verizon

EMC Emissions & Immunity
Standards

EN 55032:2015 + A11:2020 + A1:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A1:2019 + A2:2021

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

EN 301 489-52 V1.2.1

ESD - EN 61000-4-2:2009

Radiated Immunity - EN IEC 61000-4-3: 2020

EFT - EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port) - EN 61000-4-5:2014 + A1:2017

CS - EN 61000-4-6:2014

DIP - EN IEC 61000-4-11:2020

RF
Standards

EN 300 328 V2.2.2

EN 301 908-1 V15.2.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.2.1

Safety
Standards

CE: EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017

RCM: AS/NZS 62368.1:2018

CB: IEC 62368-1:2018

Safety (Ordinary Locations)
Standards

CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017

RCM: AS/NZS 62368.1:2022

CB: IEC 62368-1:2018
